Oil Analysis Kit Description

Basic
Basic Automotive kit.
Includes wear metals, 100C Viscosity, and water and soot contamination.

Advanced (Recommended for most Heavy Duty fleets)
May be used for engines, transmissions, gear boxes, differentials, or refrigerator truck circulation motors.
Includes metals contents, viscosity at 40C to 100C, TAN, TBN, and water and soot contamination

Ultimate
Recommended for Heavy Duty fleet analysis where filtration information is also required.
Includes all tests from the Advanced Analysis Kit plus particle count and ISO Cleanliness Code

Coolant Analysis Kit Description

Coolant
Coolant Analysis Kit
Includes the following tests: Visual (color, oil, fuel, magnetic precipitate, non-magnetic precipitate, and odor), pH, Glycol, Freezing and Boiling Points, Nitrite, Specific Conductance, Foam, Corrosion Metals, Contaminants and Inhibitors, SCA# (Supplemental Coolant Additives), and Total Hardness

1. All kits are available as either standard or “SV” type.
2. SV kits come with a cap and needle assembly for sampling through a pressurized sampling valve.
3. Return Postage Options: All kits are available as either, non-postage paid, postage paid, or UPS postage paid.

Vacuum Pumps and Sampling Valves

JGVP01 Oil Analysis Vacuum Pump
Use the JGVP01 Vacuum Pump for engine, transmission, or gearbox sampling through the dipstick or access hole.

Instructions:  Remove the sample jar cap. Attach the tubing to the Vacuum Pump and insert the tubing into the oil reservoir through the dipstick tube or access hole. Actuate the pump until the oil sample comes up the tubing and fills the sample jar approximately 3/4 full. Throw away the tubing section after the sample is taken (never reuse the tubing section). Put the cap on the sample jar. Fill out the sample jar label completely and attach it to the sample jar. It's that simple!!

Note: Always use a fresh tubing section for any oil sample. Tubing is available in 54" sections as well as 100ft. and 1000ft. rolls. Refer to Pricing Sheet JGTU01, JGTU02 and JGTU03.

JGVP02 Coolant Analysis Vacuum Pump
Use the JGVP02 Vacuum Pump for coolant sampling from the coolant reservoir.

Instructions:  Remove the sample jar cap. Attach the tubing to the Vacuum Pump and insert the tubing into the coolant reservoir. Actuate the pump until the coolant sample comes up the tubing and fills the sample jar approximately 3⁄4 full. Throw away the tubing section after the sample is taken (never reuse the tubing section). Put the cap on the sample jar. Fill out the sample jar label completely and attach it to the sample jar. It’s that simple !!

Note: Always use a fresh tubing section for any oil sample. Tubing is available in 54" sections as well as 100ft. and 1000ft. rolls. Refer to Pricing Sheet JGTU01, JGTU02 and JGTU03.

Sampling Valves
Sampling valves are permanently installed and are used to take samples from pressurized systems. Our sampling valves include a metal cap and seal to keep the access hole area clean and free from debris.

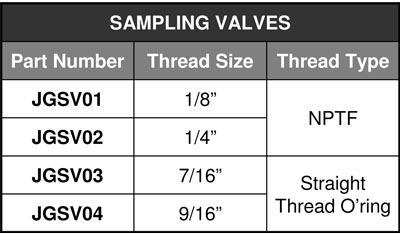

Sampling valves are available in several types for either pipe tap or straight thread O-ring installations. Refer to chart below.

Instructions:  Remove the sample jar cap and install the cap and tube assembly from your SV-Type sampling kit. Keep the cap. Remove the sampling valve cap and insert the sampling needle and extract the sample under pressure. Fill the sample jar approximately 3⁄4 full. Remove the cap and tube assembly from the sample jar and throw it away. Never reuse the cap and tube assembly. Put the cap on the sample jar. Fill out the sample jar label completely and attach it to the sample jar. It’s that simple !!

JG Lubricant Services supplies oil analysis kits to test different types of equipment and a host of different applications including engines, transmissions, differentials, generators, refrigeration equipment (reefer units) and APUs (Auxiliary Power Units). Our oil analysis kit is designed to meet your needs and provide both individuals and fleet managers with complete data that shows the overall health of both the oil and the host equipment.

Our oil analysis kit is packaged in either single or 3-packs for individual sales through the online store. Oil analysis kits are also available in convenient 10-packs for fleet use and quantity discounts on all of our oil analysis kit types, are available from orders of 50 kits up to 1000 kit orders.

The JG Lubricant Services oil analysis kit is designed to meet all your equipment maintenance needs and ensures your equipment remains as “worry free” as possible. In an effort to meet all system demands, we have developed and currently market (3) levels of testing including our Basic oil analysis kit, an Advanced oil analysis kit and an Ultimate oil analysis kit. These oil analysis kits can test engines, transmissions, differentials, generators, refrigeration equipment (reefer units) and APUs (Auxiliary Power Units). Our oil analysis service and lubricant analysis data gives you peace of mind in knowing your equipment is protected through scientifically proven testing and analysis methods.

So, why not move from your current preventative maintenance program to a “predictive maintenance” program through JG Lubricant Services. Our oil analysis kits can get you where you need to be in order to maximize savings and maintain equipment in tip top condition. It’s the only way to ensure you don’t get caught fixing unanticipated problems that caught you “off guard” and that leave your equipment off the road and in the repair shop where it’s not ready for use and, in the case of a commercial vehicle, not making revenue.
